The Jones Building

2023

827 B Avenue, National City, San Diego, CA 91950

Detail Design for Mixed Use Building Final | ART 453 | Nadia Nunez, Instructor

Project done in collaboration with Sarah Hughes and Brooke Hoang under fictitious firm RH&H Interiors LLC.

The Jones building is a mixed-use project with a cafe, flower shop, and the two lofts that sit above. The owners of the building, Lindsey and Oliver Jones, have a dream of owning a flower shop, and this building brings that dream to life. It’s in a modern industrial style, which allows for ample lighting via the large glass windows. Flower shop design by Sarah Hughes and Cafe designed by Brooke Hoang. In order to maximize commercial parking at front of site, an underground parking garage has been designated for owners of lofts as well as storage units and parking for employees of the commercial spaces.

  • An image of the Float House.

    01

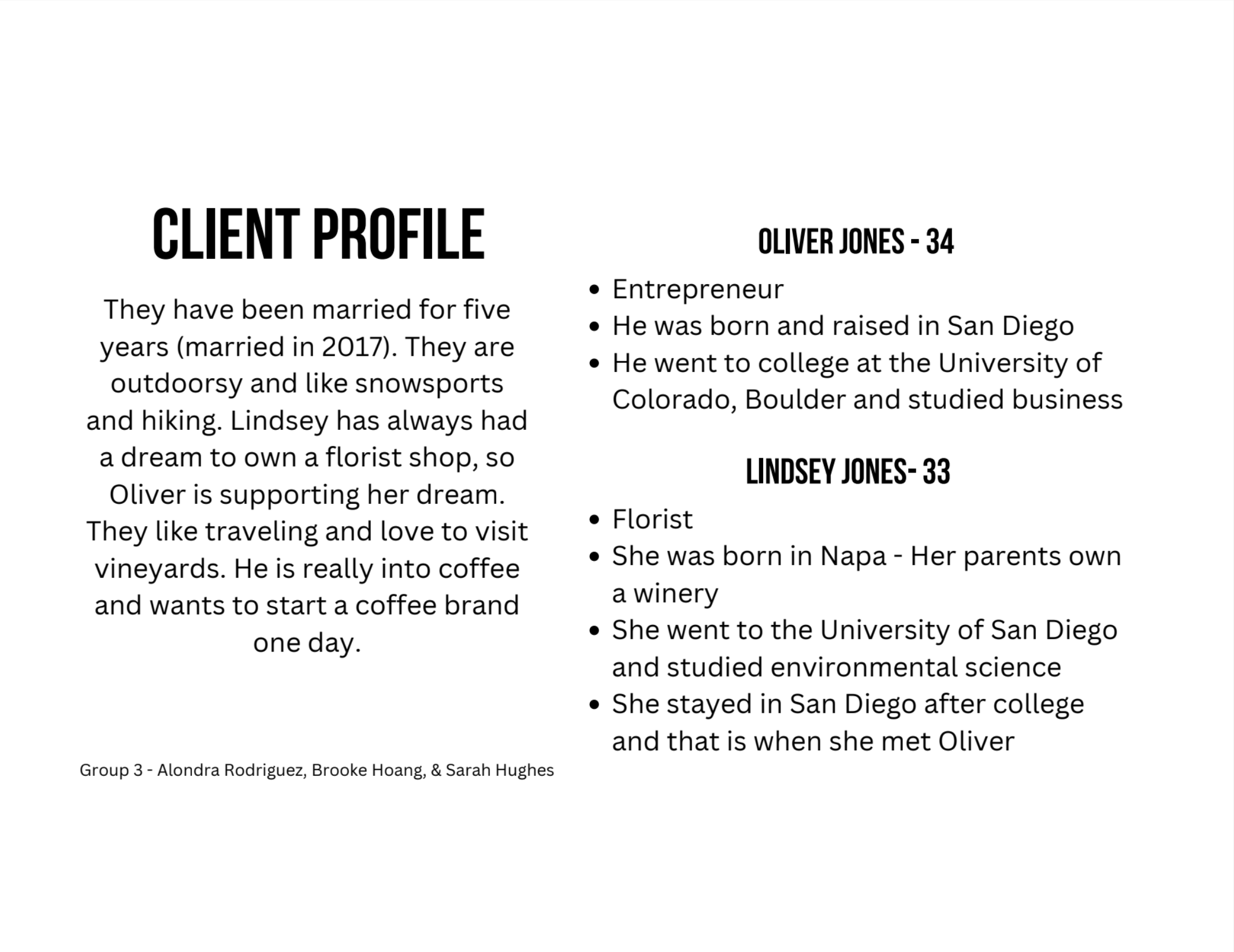

  • Client Profile

    02

  • Mood Board

    03

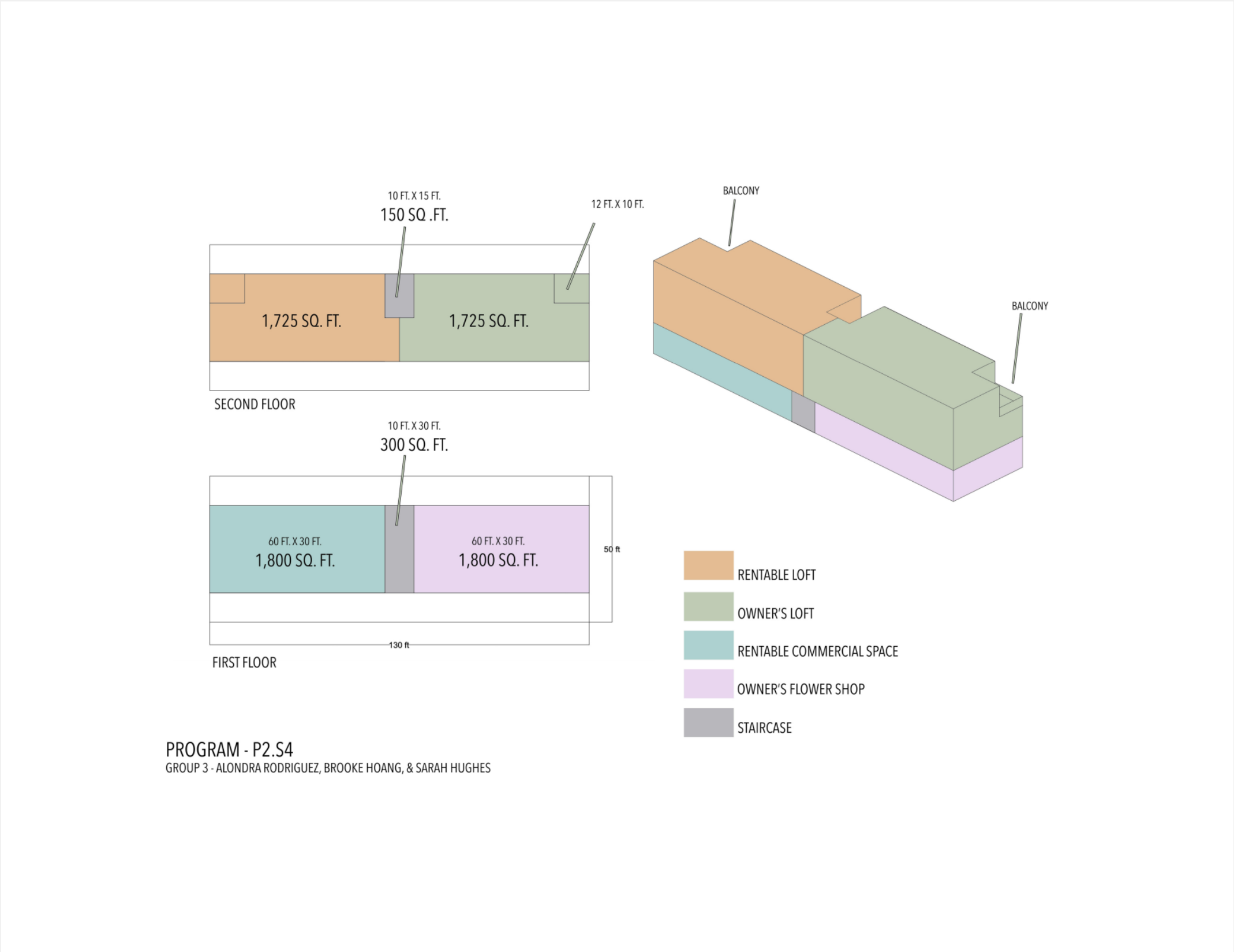

  • Program

    04

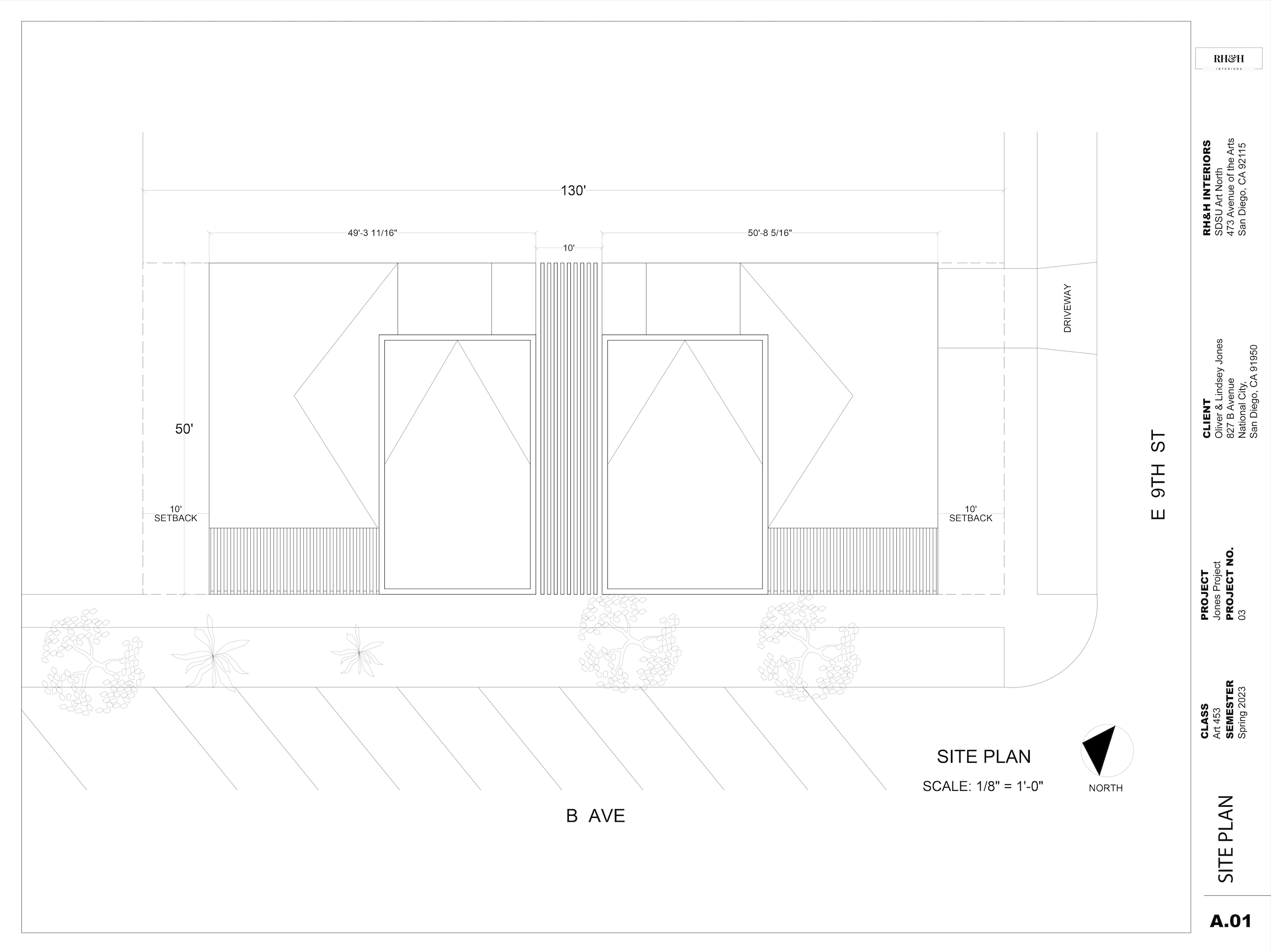

  • Site Plan

    05

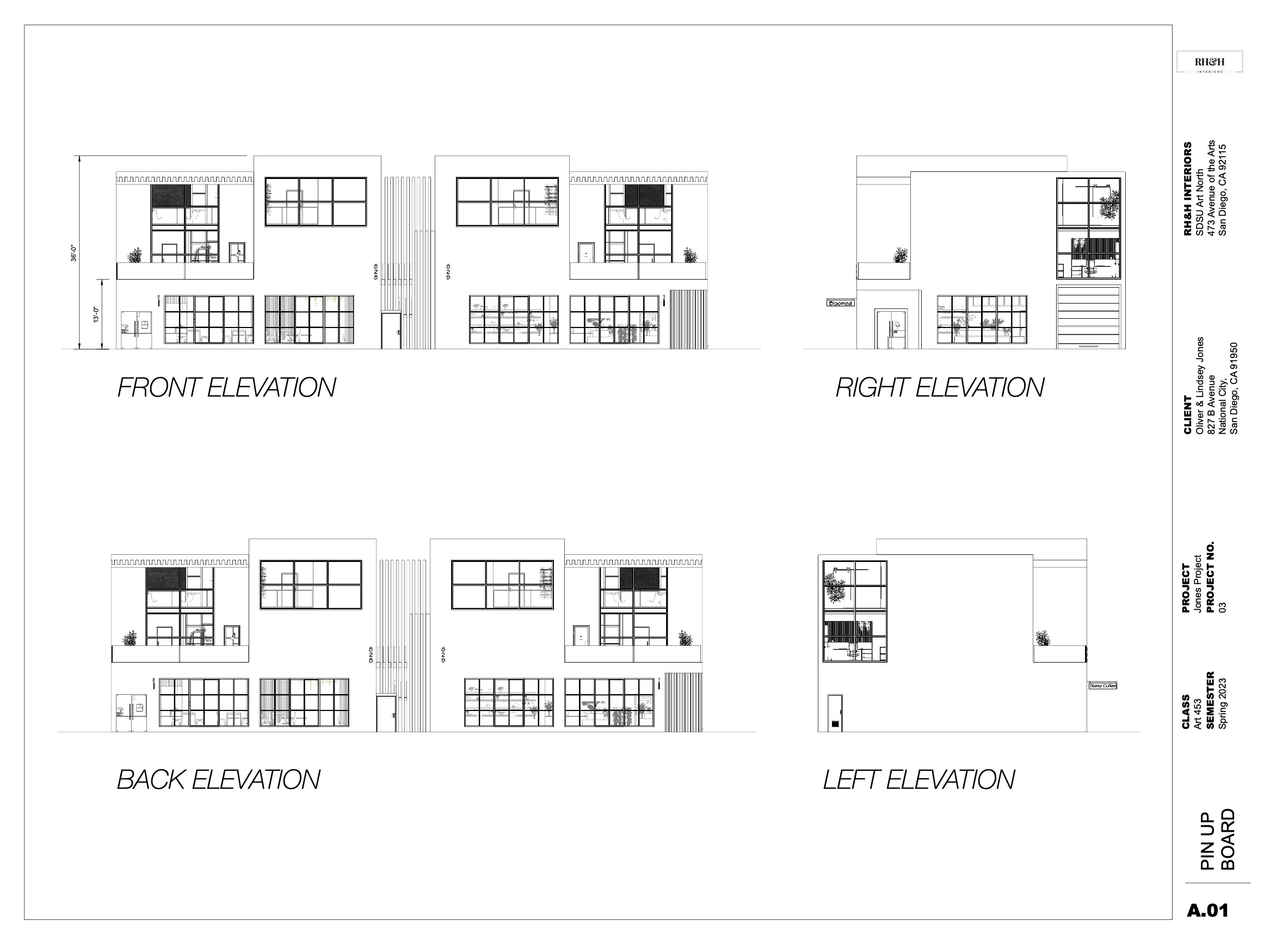

  • Elevations

    06

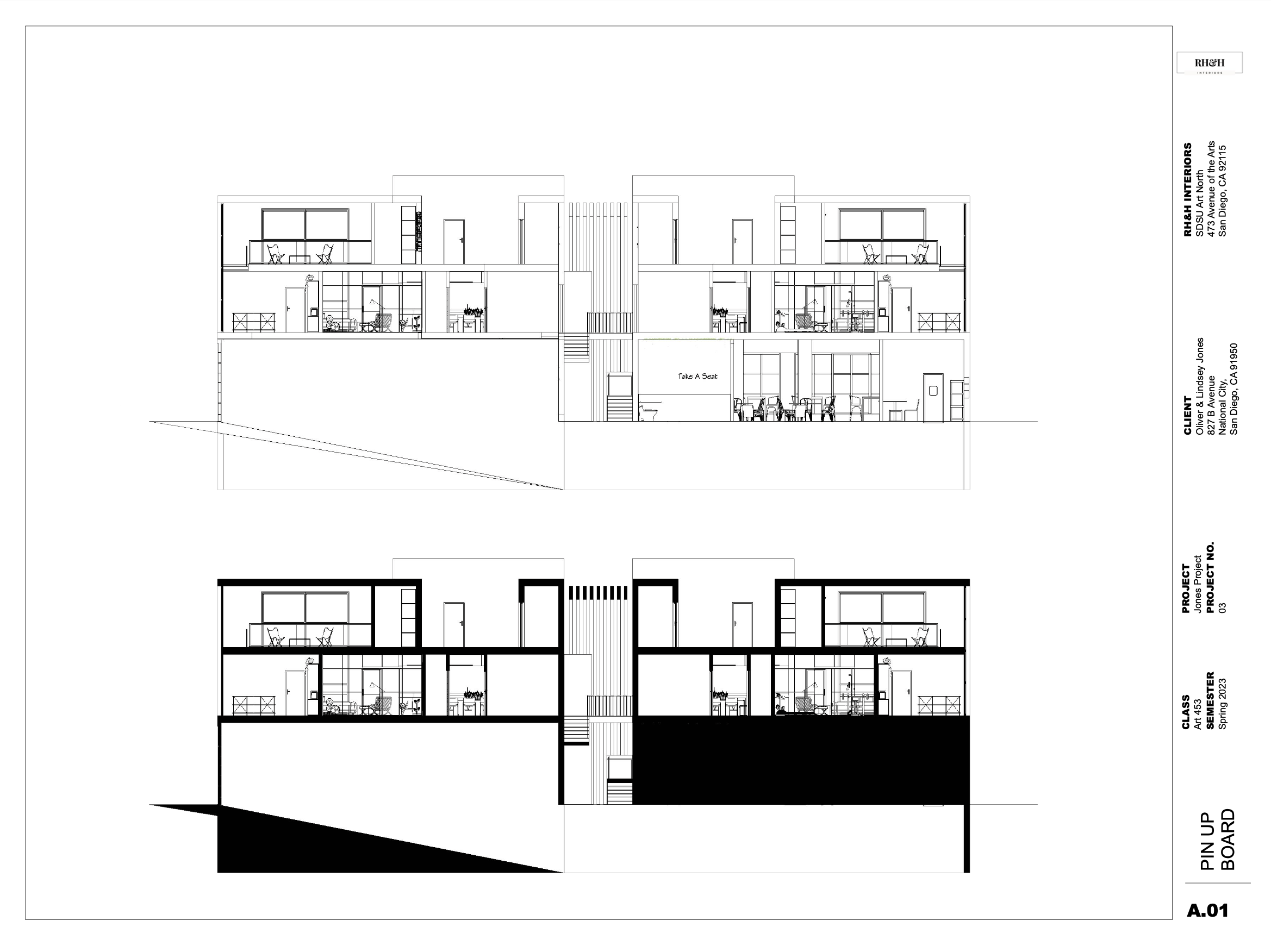

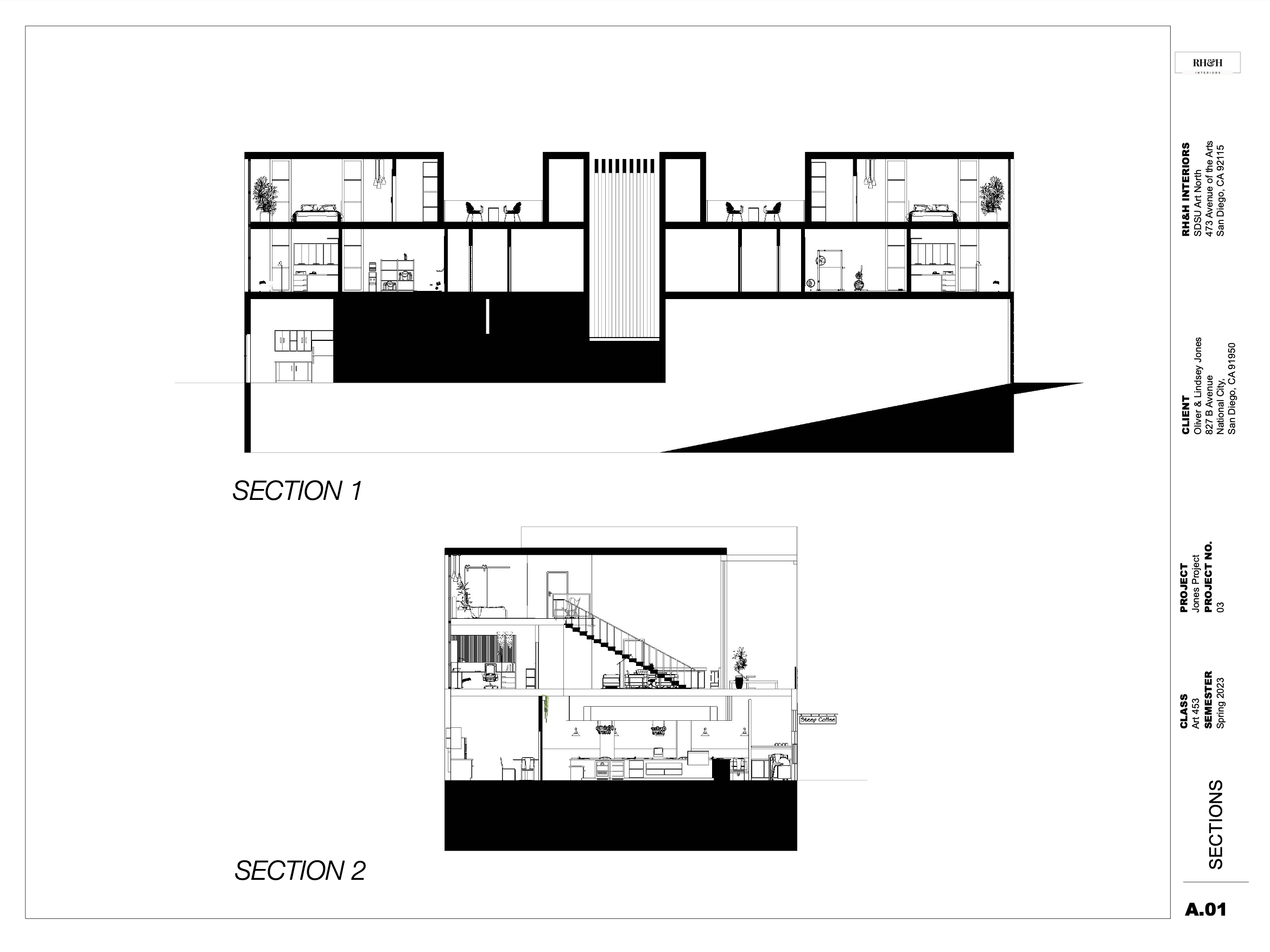

  • Sections

    07

  • Section unfilled

    08

  • Colored Elevations

    09

  • Ground level floor plan

    10

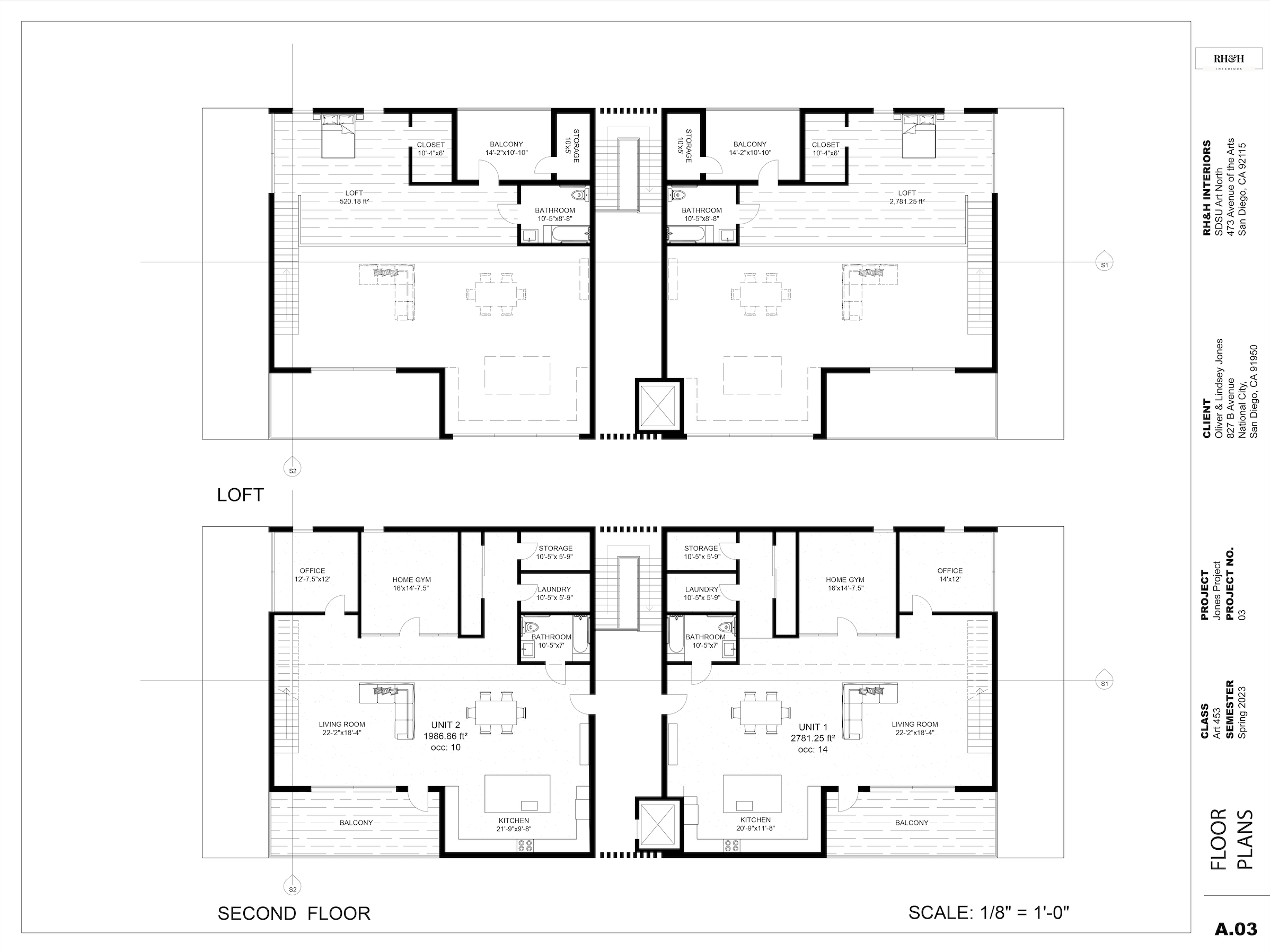

  • Loft Floor Plan

    11

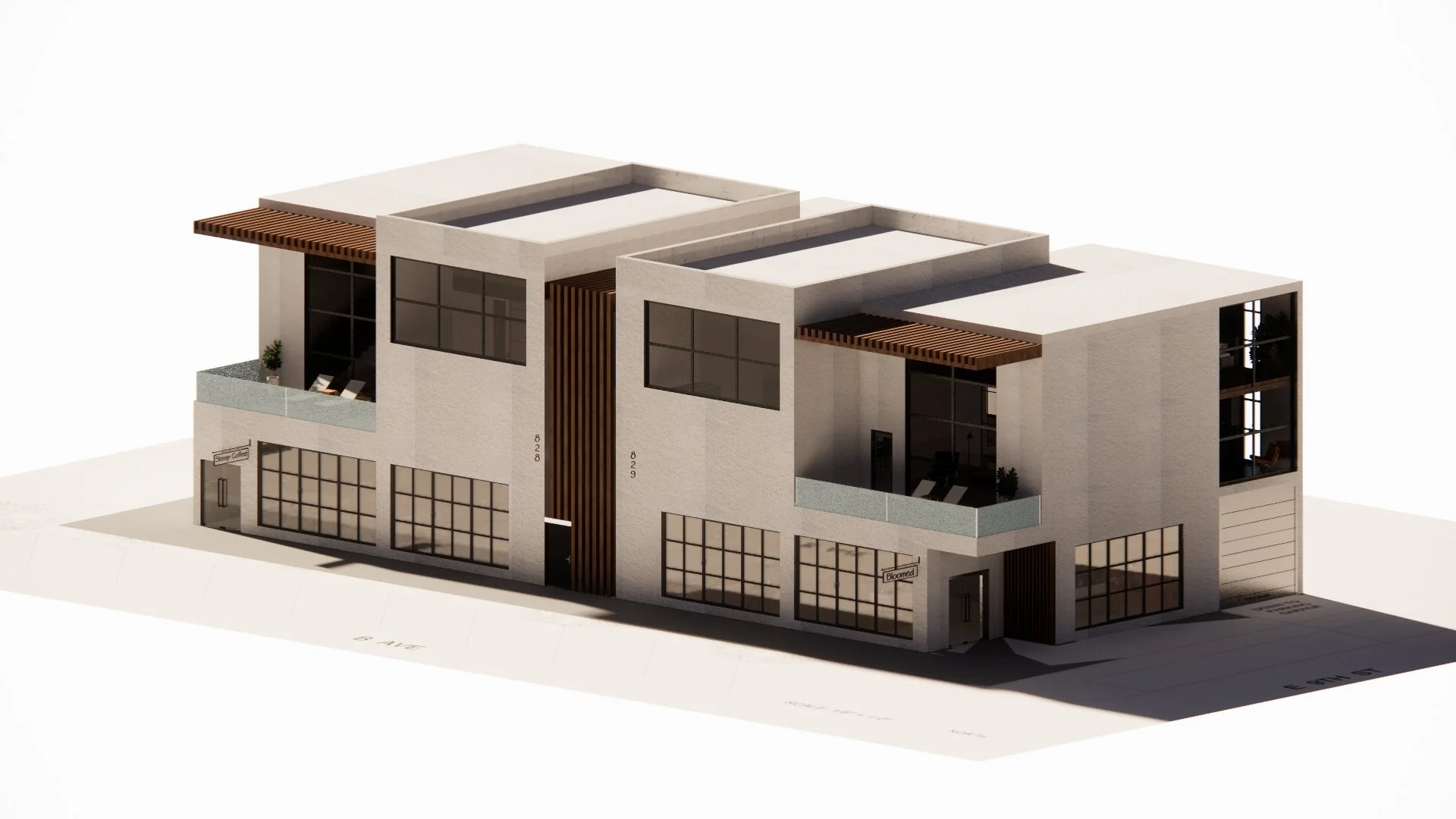

  • exterior front

    12

  • exterior back

    13

  • flower shop detail

    14

  • coffee shop detail

    15

  • window detail

    16

  • living room

    17

  • home gym

    18

  • kitchen

    19

  • bedroom

    20
